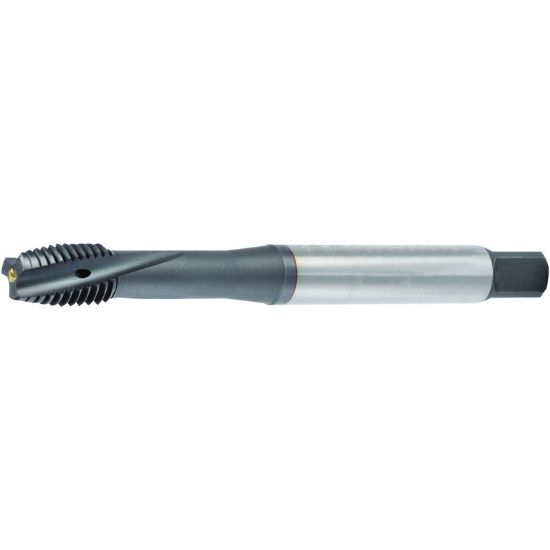

WIDIA/KENNAMETAL GT215008 M6-1.00MM Cut Spiral Flute Plug 3.0P-5.5P HSSE-Powder Metal TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT215008
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Coating TiCN
Package Size 1
Shipping State Ohio
Application Plug Tapping, Through Hole Tapping, Cut Tapping, Tapping
Made In USA No
Performance Rating High Performance
Dimensional Specifications
Thread Limit 6H
Tap Square 0.1910
Tap Style Cut Spiral Flute
Tap Type Plug
Thread Type Metric
Shank/Pilot Dia 0.2362 6.00MM
Length Type Standard
Thread Size M6
Tool Material Steel
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Overall Len 3.1490 79.98MM
Dimension Standard DIN/DIN
Flutes/Inserts 3
Thread Pitch 1.00MM
Machine Side Connection Type Tap Collet
Drill Range 0.1953 4.96MM - 0.2055 5.22MM
Tap Chamfer 3.0P-5.5P
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru Yes
Industry-Specific Applications
Agricultural YES
Energy Yes
Automotive Yes
Aerospace Yes
Job Shop Yes
Mold Yes
