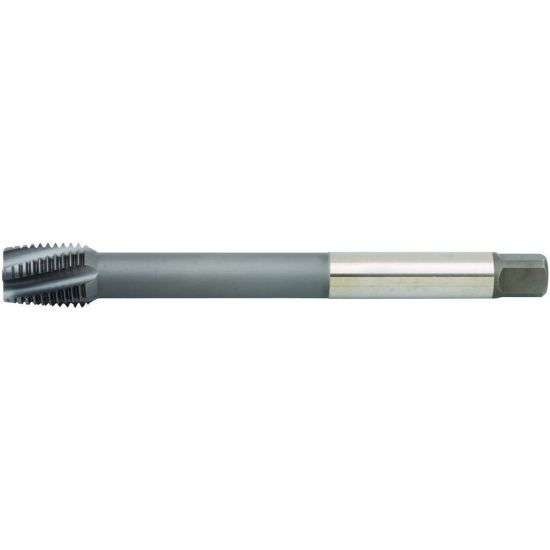

WIDIA/KENNAMETAL GT205125 M33-3.50MM Cut Spiral Flute Plug 3.0P-5.5P HSSE-Powder Metal TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT205125
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Coating TiCN
Made In USA No
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Performance Rating High Performance
Shipping State Ohio
Package Size 1
Dimensional Specifications
Thread Size M33
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Flute
Thread Pitch 3.50MM
Flute Direction R - Right
Overall Len 9.8430 250.01MM
Length Type Standard
Tool Material Steel
Flutes/Inserts 5
Thread Type Metric
Tap Type Plug
Tap Square 0.7800
Tap Chamfer 3.0P-5.5P
Dimension Standard DIN/DIN
Shank/Pilot Dia 1.0210 25.93MM
Drill Range 1.1559 29.36MM - 1.1917 30.27MM
Thread Limit 6H
Cut Rating <40HRC Steel, Stainless Steel
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
