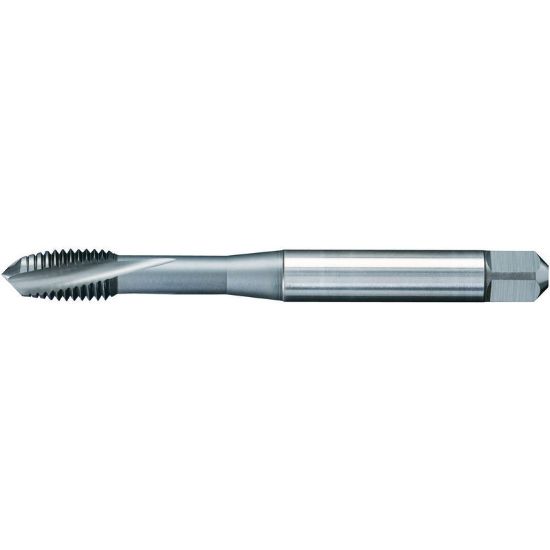

WIDIA/KENNAMETAL GT205116 M36-4.00MM Cut Spiral Flute Plug 3.0P-5.5P HSSE-Powder Metal TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT205116
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Shipping State Ohio
Coating TiCN
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Thread Pitch 4.00MM
Thread Limit 6H
Cut Rating <40HRC Steel, Stainless Steel
Overall Len 7.8740 200.00MM
Tool Material Steel
Dimension Standard DIN/DIN
Tap Chamfer 3.0P-5.5P
Thread Type Metric
Shank/Pilot Dia 1.1024 28.00MM
Flutes/Inserts 6
Tap Type Plug
Thread Size M36
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Flute
Drill Range 1.2535 31.84MM - 1.2945 32.88MM
Flute Direction R - Right
Tap Square 0.8620
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
