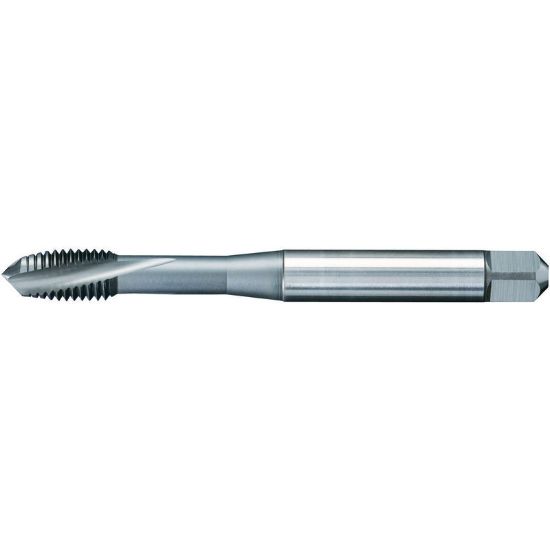

WIDIA/KENNAMETAL GT205113 M30-3.50MM Cut Spiral Flute Plug 3.0P-5.5P HSSE-Powder Metal TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT205113
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Application Through Hole Tapping, Plug Tapping, Tapping, Cut Tapping
Package Size 1
Coating TiCN
Performance Rating High Performance
Shipping State Ohio
Made In USA No
Dimensional Specifications
Thread Size M30
Tool Material Steel
Flutes/Inserts 5
Tap Square 0.7050
Cut Rating <40HRC Steel, Stainless Steel
Thread Limit 6H
Tap Style Cut Spiral Flute
Thread Type Metric
Overall Len 7.0900 180.09MM
Drill Range 1.0583 26.88MM - 1.0890 27.66MM
Tap Type Plug
Dimension Standard DIN/DIN
Shank/Pilot Dia 0.8661 22.00MM
Machine Side Connection Type Tap Collet
Tap Chamfer 3.0P-5.5P
Thread Pitch 3.50MM
Flute Direction R - Right
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
Automotive Yes
