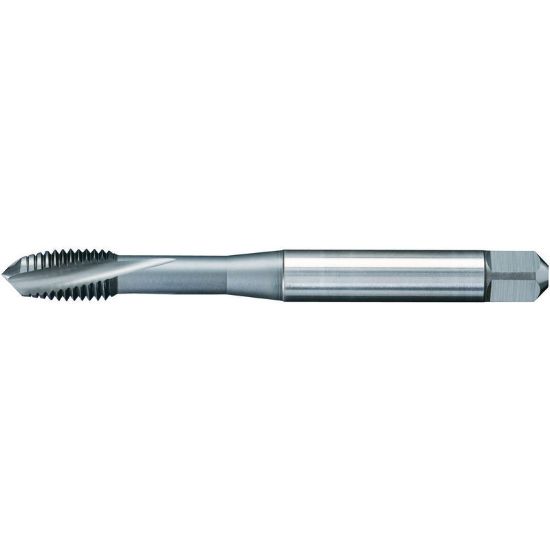

WIDIA/KENNAMETAL GT205111 M24-3.00MM Cut Spiral Flute Plug 3.0P-5.5P HSSE-Powder Metal TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT205111
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Cut Tapping, Tapping, Through Hole Tapping
Performance Rating High Performance
Coating TiCN
Package Size 1
Made In USA No
Shipping State Ohio
Dimensional Specifications
Thread Type Metric
Shank/Pilot Dia 0.7600 19.30MM
Flutes/Inserts 5
Dimension Standard DIN/DIN
Machine Side Connection Type Tap Collet
Overall Len 6.2990 159.99MM
Tap Chamfer 3.0P-5.5P
Thread Size M24
Thread Pitch 3.00MM
Tool Material Steel
Thread Limit 6H
Tap Style Cut Spiral Flute
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Drill Range 0.8220 20.88MM - 0.8528 21.66MM
Length Type Standard
Tap Square 0.5670
Tap Type Plug
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Mold Yes
Automotive Yes
Job Shop Yes
Agricultural YES
Energy Yes
