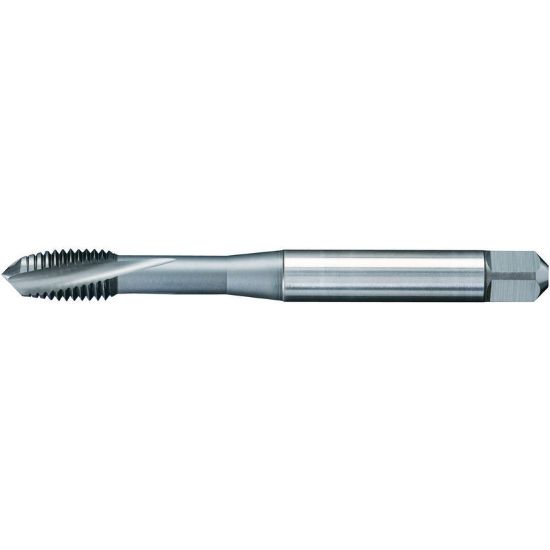

WIDIA/KENNAMETAL GT205104 M8-1.00MM Cut Spiral Flute Plug 3.0P-5.5P HSSE-Powder Metal TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT205104
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Tapping, Through Hole Tapping, Cut Tapping
Performance Rating High Performance
Made In USA No
Shipping State Ohio
Coating TiCN
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.2362 6.00MM
Tool Material Steel
Flute Direction R - Right
Overall Len 3.5430 89.99MM
Length Type Standard
Thread Pitch 1.00MM
Machine Side Connection Type Tap Collet
Tap Square 0.1930
Tap Chamfer 3.0P-5.5P
Thread Limit 6H
Tap Style Cut Spiral Flute
Thread Size M8
Thread Type Metric
Tap Type Plug
Cut Rating <40HRC Steel, Stainless Steel
Drill Range 0.2740 6.96MM - 0.2843 7.22MM
Dimension Standard DIN/DIN
Flutes/Inserts 3
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Automotive Yes
Agricultural YES
Energy Yes
