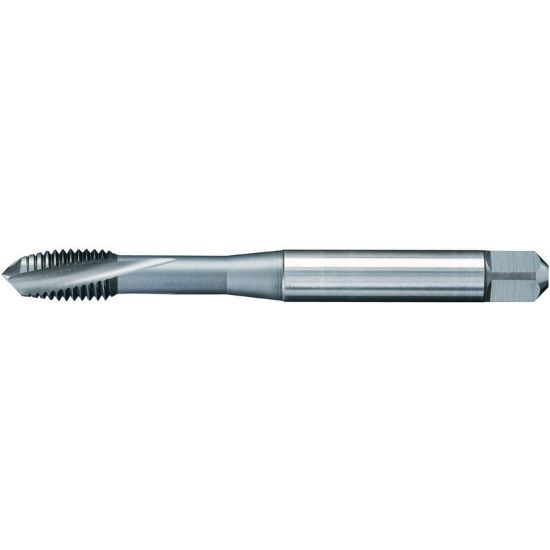

WIDIA/KENNAMETAL GT205102 M16-2.00MM Cut Spiral Flute Plug 3.0P-5.5P HSSE-Powder Metal TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT205102
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Through Hole Tapping, Cut Tapping, Tapping, Plug Tapping
Performance Rating High Performance
Shipping State Ohio
Coating TiCN
Package Size 1
Dimensional Specifications
Thread Size M16
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Flutes/Inserts 4
Length Type Standard
Dimension Standard DIN/DIN
Tap Square 0.3540
Tool Material Steel
Drill Range 0.5480 13.92MM - 0.5685 14.44MM
Machine Side Connection Type Tap Collet
Tap Chamfer 3.0P-5.5P
Thread Pitch 2.00MM
Overall Len 4.3300 109.98MM
Thread Type Metric
Shank/Pilot Dia 0.4724 12.00MM
Tap Type Plug
Thread Limit 6H
Tap Style Cut Spiral Flute
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Mold Yes
Automotive Yes
Job Shop Yes
Agricultural YES
Energy Yes
