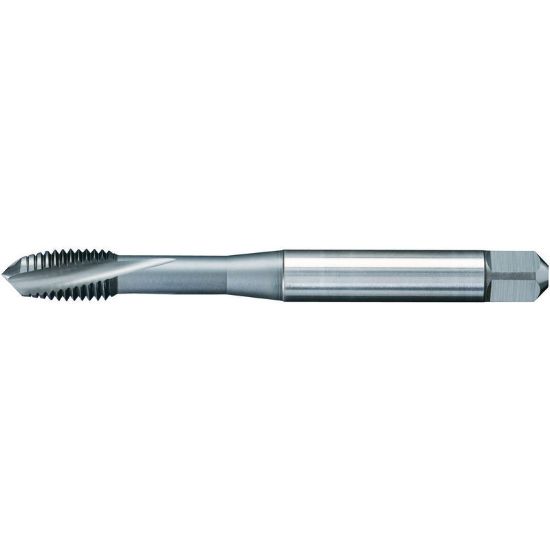

WIDIA/KENNAMETAL GT205101 M14-2.00MM Cut Spiral Flute Plug 3.0P-5.5P HSSE-Powder Metal TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT205101
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Ohio
Made In USA No
Coating TiCN
Package Size 1
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Performance Rating High Performance
Dimensional Specifications
Dimension Standard DIN/DIN
Tap Square 0.3540
Thread Type Metric
Tap Type Plug
Thread Pitch 2.00MM
Overall Len 4.3300 109.98MM
Drill Range 0.4693 11.92MM - 0.4898 12.44MM
Tap Chamfer 3.0P-5.5P
Thread Size M14
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Flutes/Inserts 4
Length Type Standard
Thread Limit 6H
Tool Material Steel
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.4331 11.00MM
Tap Style Cut Spiral Flute
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Energy Yes
