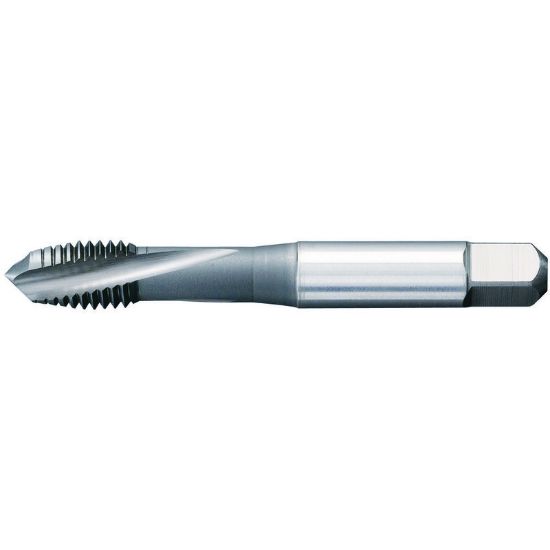

WIDIA/KENNAMETAL GT205070 M4-0.70MM Cut Spiral Flute Plug 3.0P-5.5P HSSE-Powder Metal TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT205070
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Made In USA No
Performance Rating High Performance
Shipping State Ohio
Coating TiCN
Package Size 1
Dimensional Specifications
Cut Rating <40HRC Steel, Stainless Steel
Shank/Pilot Dia 0.1680 4.27MM
Flutes/Inserts 2
Tool Material Steel
Flute Direction R - Right
Length Type Standard
Thread Size M4
Machine Side Connection Type Tap Collet
Tap Square 0.1290
Tap Chamfer 3.0P-5.5P
Overall Len 2.1250 53.98MM
Drill Range 0.1287 3.27MM - 0.1358 3.45MM
Tap Type Plug
Thread Pitch 0.70MM
Thread Type Metric
Dimension Standard ANSI/ANSI
Thread Limit 6H
Tap Style Cut Spiral Flute
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Automotive Yes
Agricultural YES
Energy Yes
