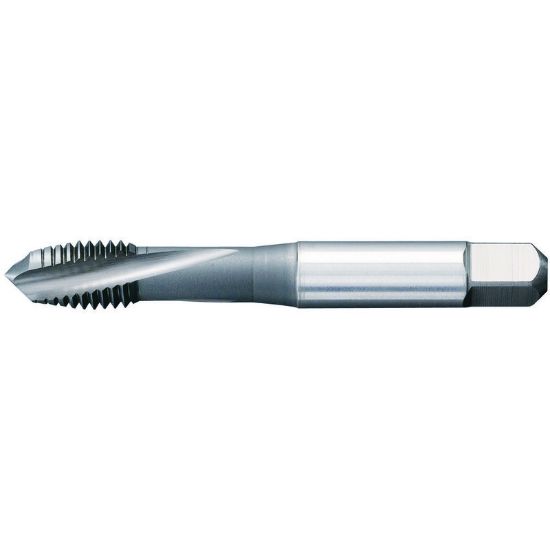

WIDIA/KENNAMETAL GT205059 7/16-20.00TPI Cut Spiral Flute Plug 3.0P-5.5P HSSE-Powder Metal TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT205059
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Coating TiCN
Package Size 1
Shipping State Ohio
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Performance Rating High Performance
Dimensional Specifications
Flute Direction R - Right
Length Type Standard
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.3230 8.20MM - P
Overall Len 3.1600 80.26MM
Tap Style Cut Spiral Flute
Thread Pitch 20.00TPI
Cut Rating <40HRC Steel, Stainless Steel
Flutes/Inserts 3
Thread Size 7/16"
Tap Chamfer 3.0P-5.5P
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Drill Range 0.3854 9.79MM - 0.3984 10.12MM
Tap Square 0.2420
Thread Limit 3B
Tap Type Plug
Tool Material Steel
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
