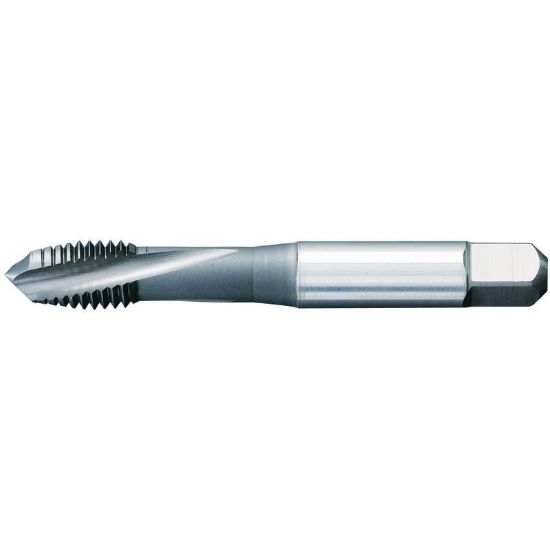

WIDIA/KENNAMETAL GT205058 3/8-24.00TPI Cut Spiral Flute Plug 3.0P-5.5P HSSE-Powder Metal TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT205058
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Performance Rating High Performance
Made In USA No
Shipping State Ohio
Package Size 1
Coating TiCN
Dimensional Specifications
Thread Pitch 24.00TPI
Flutes/Inserts 3
Tap Type Plug
Thread Limit 3B
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Drill Range 0.3315 8.42MM - 0.3421 8.69MM
Flute Direction R - Right
Overall Len 2.9370 74.60MM
Tap Square 0.2840
Length Type Standard
Machine Side Connection Type Tap Collet
Tap Chamfer 3.0P-5.5P
Thread Size 3/8"
Cut Rating <40HRC Steel, Stainless Steel
Shank/Pilot Dia 0.3810 9.68MM
Tap Style Cut Spiral Flute
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Automotive Yes
Agricultural YES
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
