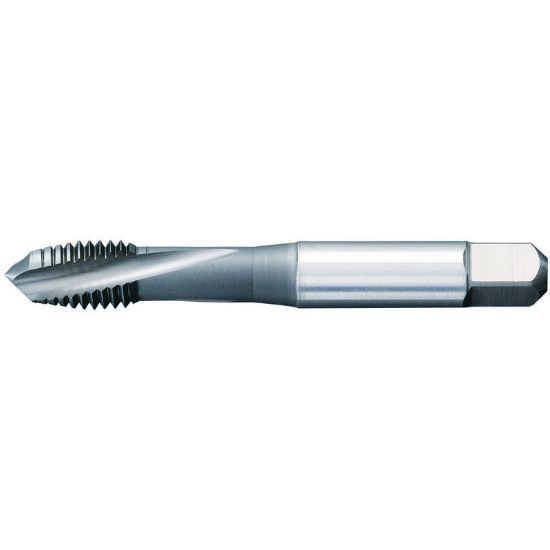

WIDIA/KENNAMETAL GT205049 1/2-13.00TPI Cut Spiral Flute Plug 3.0P-5.5P HSSE-Powder Metal TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT205049
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Coating TiCN
Package Size 1
Application Through Hole Tapping, Plug Tapping, Cut Tapping, Tapping
Made In USA No
Shipping State Ohio
Performance Rating High Performance
Dimensional Specifications
Tap Style Cut Spiral Flute
Flute Direction R - Right
Length Type Standard
Thread Size 1/2"
Tool Material Steel
Shank/Pilot Dia 0.3670 9.32MM
Drill Range 0.4201 10.67MM - 0.4398 11.17MM
Tap Type Plug
Thread Limit 3B
Dimension Standard ANSI/ANSI
Machine Side Connection Type Tap Collet
Tap Square 0.2750
Tap Chamfer 3.0P-5.5P
Overall Len 3.3800 85.85MM
Flutes/Inserts 3
Thread Pitch 13.00TPI
Thread Type NC/UNC
Cut Rating <40HRC Steel, Stainless Steel
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Automotive Yes
Aerospace Yes
Job Shop Yes
Mold Yes
