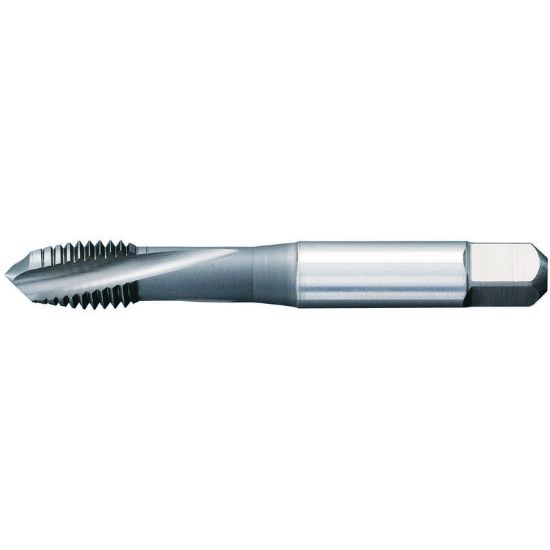

WIDIA/KENNAMETAL GT205048 7/16-14.00TPI Cut Spiral Flute Plug 3.0P-5.5P HSSE-Powder Metal TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT205048
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Application Through Hole Tapping, Cut Tapping, Tapping, Plug Tapping
Coating TiCN
Package Size 1
Performance Rating High Performance
Shipping State Ohio
Made In USA No
Dimensional Specifications
Tool Material Steel
Drill Range 0.3630 9.22MM - 0.3815 9.69MM
Overall Len 3.1600 80.26MM
Tap Style Cut Spiral Flute
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.3230 8.20MM - P
Tap Chamfer 3.0P-5.5P
Dimension Standard ANSI/ANSI
Flutes/Inserts 3
Tap Square 0.2420
Thread Limit 3B
Thread Size 7/16"
Thread Pitch 14.00TPI
Tap Type Plug
Thread Type NC/UNC
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Agricultural YES
Energy Yes
Aerospace Yes
Mold Yes
