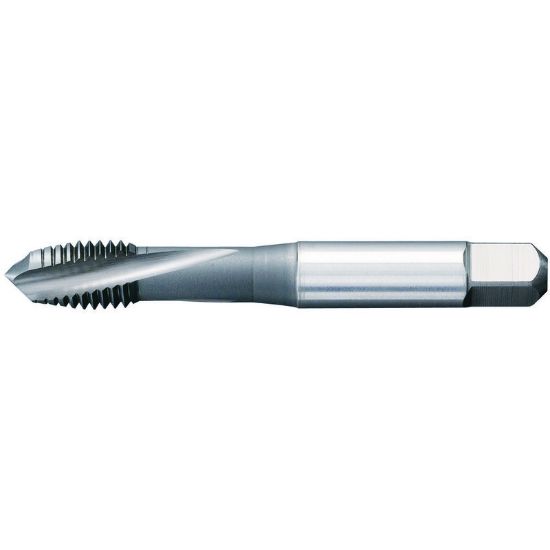

WIDIA/KENNAMETAL GT205045 5/16-18.00TPI Cut Spiral Flute Plug 3.0P-5.5P HSSE-Powder Metal TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT205045
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Performance Rating High Performance
Shipping State Ohio
Coating TiCN
Made In USA No
Dimensional Specifications
Thread Type NC/UNC
Cut Rating <40HRC Steel, Stainless Steel
Tool Material Steel
Drill Range 0.2547 6.47MM - 0.2689 6.83MM
Flutes/Inserts 3
Machine Side Connection Type Tap Collet
Tap Square 0.2360
Tap Chamfer 3.0P-5.5P
Tap Type Plug
Thread Pitch 18.00TPI
Tap Style Cut Spiral Flute
Thread Limit 3B
Dimension Standard ANSI/ANSI
Thread Size 5/16"
Flute Direction R - Right
Shank/Pilot Dia 0.3180 8.08MM
Overall Len 2.7200 69.09MM
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
Automotive Yes
