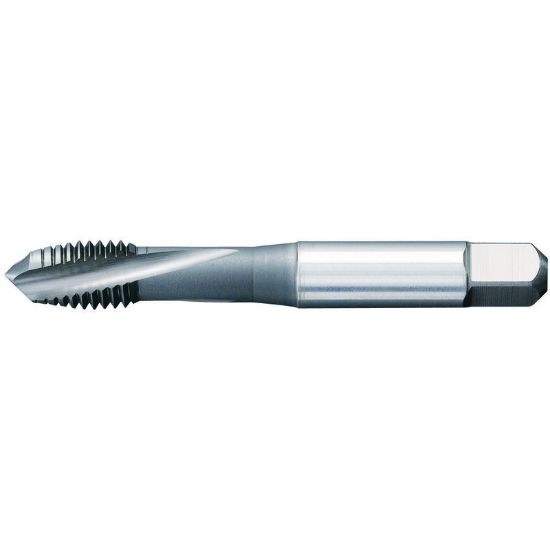

WIDIA/KENNAMETAL GT205041 No.12-24.00TPI Cut Spiral Flute Plug 3.0P-5.5P HSSE-Powder Metal TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT205041
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Performance Rating High Performance
Coating TiCN
Shipping State Ohio
Package Size 1
Dimensional Specifications
Flute Direction R - Right
Length Type Standard
Thread Pitch 24.00TPI
Flutes/Inserts 3
Thread Limit 3B
Dimension Standard ANSI/ANSI
Overall Len 2.3800 60.45MM
Drill Range 0.1724 4.38MM - 0.1835 4.66MM
Tap Style Cut Spiral Flute
Machine Side Connection Type Tap Collet
Tap Square 0.1630
Tap Chamfer 3.0P-5.5P
Thread Size No.12
Thread Type NC/UNC
Cut Rating <40HRC Steel, Stainless Steel
Shank/Pilot Dia 0.2200 5.59MM
Tap Type Plug
Tool Material Steel
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Agricultural YES
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
