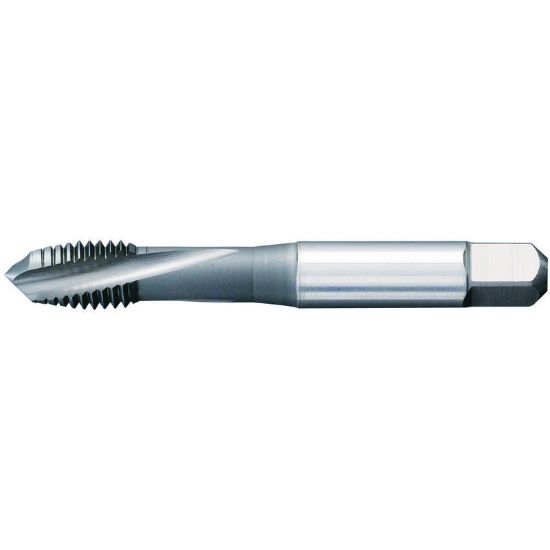

WIDIA/KENNAMETAL GT205038 No.8-32.00TPI Cut Spiral Flute Plug 3.0P-5.5P HSSE-Powder Metal TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT205038
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Made In USA No
Shipping State Ohio
Performance Rating High Performance
Coating TiCN
Dimensional Specifications
Thread Type NC/UNC
Cut Rating <40HRC Steel, Stainless Steel
Flutes/Inserts 2
Tool Material Steel
Flute Direction R - Right
Shank/Pilot Dia 0.1680 4.27MM
Length Type Standard
Thread Size No.8
Overall Len 2.1300 54.10MM
Tap Chamfer 3.0P-5.5P
Thread Limit 2B
Tap Type Plug
Thread Pitch 32.00TPI
Dimension Standard ANSI/ANSI
Machine Side Connection Type Tap Collet
Drill Range 0.1315 3.34MM - 0.1394 3.54MM
Tap Square 0.1290
Tap Style Cut Spiral Flute
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
