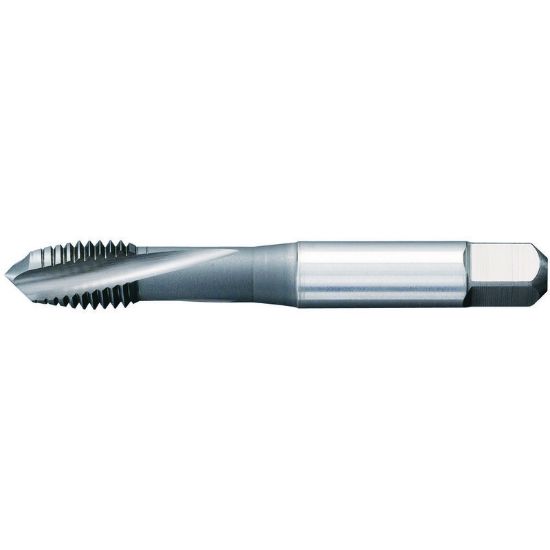

WIDIA/KENNAMETAL GT205032 No.2-56.00TPI Cut Spiral Flute Plug 3.0P-5.5P HSSE-Powder Metal TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT205032
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Ohio
Application Cut Tapping, Tapping, Through Hole Tapping, Plug Tapping
Performance Rating High Performance
Coating TiCN
Package Size 1
Made In USA No
Dimensional Specifications
Shank/Pilot Dia 0.1410 3.58MM
Overall Len 1.7500 44.45MM
Tap Type Plug
Drill Range 0.0673 1.71MM - 0.0720 1.83MM
Thread Pitch 56.00TPI
Tap Square 0.1080
Tap Style Cut Spiral Flute
Thread Size No.2
Thread Type NC/UNC
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Flutes/Inserts 2
Machine Side Connection Type Tap Collet
Tap Chamfer 3.0P-5.5P
Tool Material Steel
Length Type Standard
Thread Limit 3B
Dimension Standard ANSI/ANSI
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
Automotive Yes
