  • WIDIA/KENNAMETAL GT165007 M12-1.75MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiN + DLC

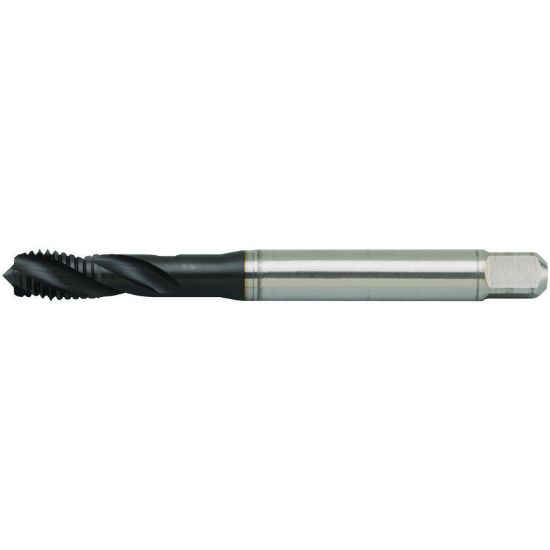

Picture of WIDIA/KENNAMETAL GT165007 M12-1.75MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiN + DLC

WIDIA/KENNAMETAL GT165007 M12-1.75MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiN + DLC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT165007
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Made In USA No
Application Mod Bottom Tapping, Cut Tapping, Tapping
Shipping State Ohio
Coating TiN + DLC
Performance Rating High Performance
Dimensional Specifications
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Tool Material Steel
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Length Type Standard
Thread Pitch 1.75MM
Overall Len 4.3310 110.01MM
Flutes/Inserts 3
Tap Square 0.3540
Thread Type Metric
Shank/Pilot Dia 0.4724 12.00MM
Thread Size M12
Dimension Standard DIN/DIN
Drill Range 0.4008 10.18MM - 0.4189 10.64MM
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Automotive Yes
Job Shop Yes
Aerospace Yes
Mold Yes
