  • WIDIA/KENNAMETAL GT165006 M10-1.50MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiN + DLC

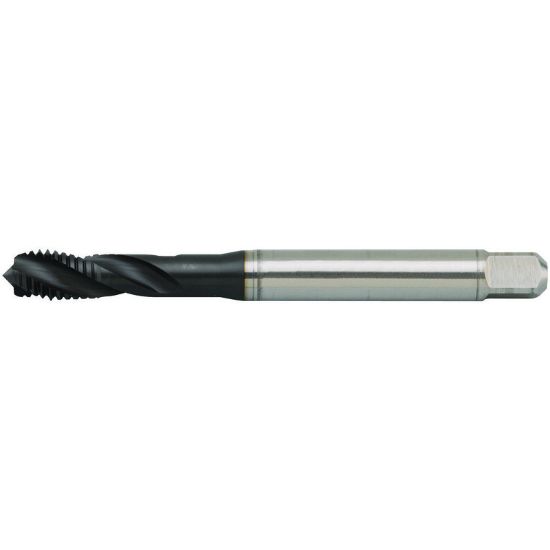

Picture of WIDIA/KENNAMETAL GT165006 M10-1.50MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiN + DLC

WIDIA/KENNAMETAL GT165006 M10-1.50MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiN + DLC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT165006
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Package Size 1
Made In USA No
Shipping State Ohio
Coating TiN + DLC
Dimensional Specifications
Thread Pitch 1.50MM
Tool Material Steel
Overall Len 3.9370 100.00MM
Thread Size M10
Thread Type Metric
Shank/Pilot Dia 0.3937 10.00MM
Tap Square 0.3150
Thread Limit 6H
Tap Chamfer 2.0P-3.0P
Machine Side Connection Type Tap Collet
Drill Range 0.3323 8.44MM - 0.3476 8.83MM
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Length Type Standard
Dimension Standard DIN/DIN
Flutes/Inserts 3
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
