  • WIDIA/KENNAMETAL GT165003 M5-0.80MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiN + DLC

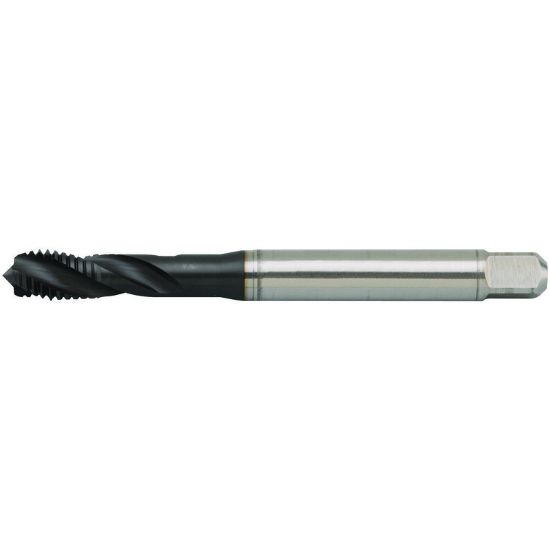

Picture of WIDIA/KENNAMETAL GT165003 M5-0.80MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiN + DLC

WIDIA/KENNAMETAL GT165003 M5-0.80MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiN + DLC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT165003
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Coating TiN + DLC
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Shipping State Ohio
Package Size 1
Dimensional Specifications
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Length Type Standard
Drill Range 0.1642 4.17MM - 0.1724 4.38MM
Tool Material Steel
Machine Side Connection Type Tap Collet
Tap Square 0.1930
Tap Type Mod Bottom
Thread Size M5
Dimension Standard DIN/DIN
Flutes/Inserts 3
Thread Pitch 0.80MM
Overall Len 2.7560 70.00MM
Thread Type Metric
Shank/Pilot Dia 0.2362 6.00MM
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Aerospace Yes
Mold Yes
Automotive Yes
Job Shop Yes
Agricultural YES
Energy Yes
