  • WIDIA/KENNAMETAL GT165001 M3-0.50MM Cut Spiral Flute Plug 3.0P-5.5P HSSE-Powder Metal TiN + DLC

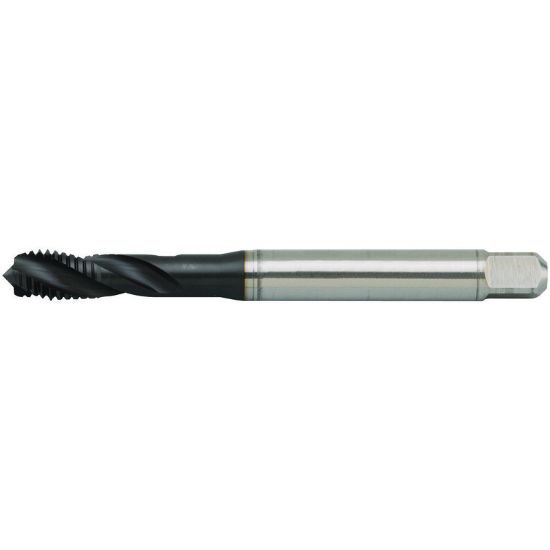

Picture of WIDIA/KENNAMETAL GT165001 M3-0.50MM Cut Spiral Flute Plug 3.0P-5.5P HSSE-Powder Metal TiN + DLC

WIDIA/KENNAMETAL GT165001 M3-0.50MM Cut Spiral Flute Plug 3.0P-5.5P HSSE-Powder Metal TiN + DLC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT165001
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN + DLC
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Package Size 1
Shipping State Ohio
Made In USA No
Performance Rating High Performance
Dimensional Specifications
Thread Type Metric
Overall Len 2.2050 56.01MM
Tap Type Plug
Dimension Standard DIN/DIN
Flutes/Inserts 3
Tool Material Steel
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Flute
Thread Limit 6H
Cut Rating <40HRC Steel, Stainless Steel
Thread Pitch 0.50MM
Tap Square 0.1060
Tap Chamfer 3.0P-5.5P
Flute Direction R - Right
Length Type Standard
Thread Size M3
Shank/Pilot Dia 0.1370 3.48MM
Drill Range 0.1083 2.75MM - 0.1106 2.81MM
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
