  • WIDIA/KENNAMETAL GT145007 M12-1.75MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal TiN + DLC

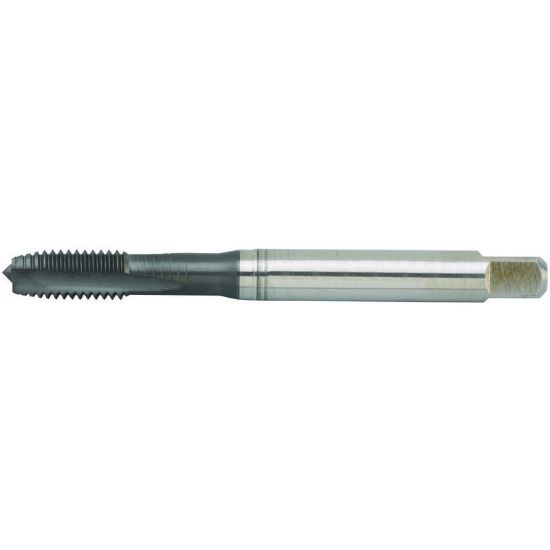

Picture of WIDIA/KENNAMETAL GT145007 M12-1.75MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal TiN + DLC

WIDIA/KENNAMETAL GT145007 M12-1.75MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal TiN + DLC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT145007
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Ohio
Application Through Hole Tapping, Plug Tapping, Tapping, Cut Tapping
Made In USA No
Coating TiN + DLC
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Thread Limit 6H
Tap Type Plug
Thread Pitch 1.75MM
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Tap Chamfer 3.0P-5.5P
Flute Direction R - Right
Length Type Standard
Thread Type Metric
Drill Range 0.4008 10.18MM - 0.4189 10.64MM
Tool Material Steel
Overall Len 4.3310 110.01MM
Thread Size M12
Dimension Standard DIN/DIN
Flutes/Inserts 3
Tap Square 0.2760
Cut Rating <40HRC Steel, Stainless Steel
Shank/Pilot Dia 0.3543 9.00MM
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Automotive Yes
Aerospace Yes
Job Shop Yes
Mold Yes
