  • WIDIA/KENNAMETAL GT145006 M10-1.50MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal TiN + DLC

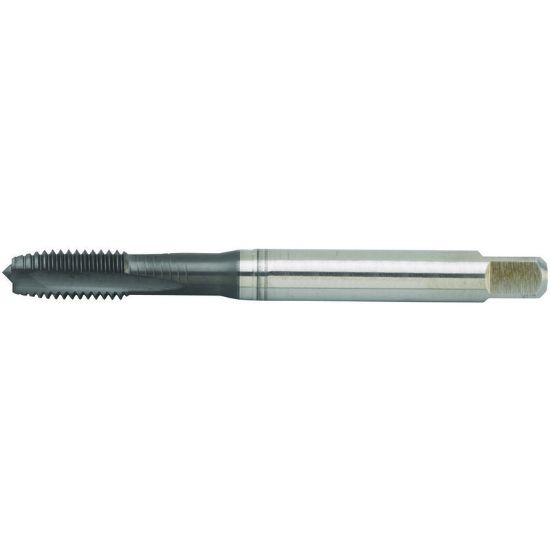

Picture of WIDIA/KENNAMETAL GT145006 M10-1.50MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal TiN + DLC

WIDIA/KENNAMETAL GT145006 M10-1.50MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal TiN + DLC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT145006
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Products specifications
Attribute name Attribute value
General Product Information
Application Through Hole Tapping, Cut Tapping, Tapping, Plug Tapping
Performance Rating High Performance
Coating TiN + DLC
Package Size 1
Shipping State Ohio
Made In USA No
Dimensional Specifications
Thread Pitch 1.50MM
Tool Material Steel
Overall Len 3.9370 100.00MM
Dimension Standard DIN/DIN
Flutes/Inserts 3
Thread Limit 6H
Thread Size M10
Thread Type Metric
Machine Side Connection Type Tap Collet
Drill Range 0.3323 8.44MM - 0.3476 8.83MM
Tap Style Cut Spiral Point
Tap Chamfer 3.0P-5.5P
Shank/Pilot Dia 0.3937 10.00MM
Tap Square 0.3150
Tap Type Plug
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Aerospace Yes
Mold Yes
Agricultural YES
Energy Yes
