  • WIDIA/KENNAMETAL GT145005 M8-1.25MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal TiN + DLC

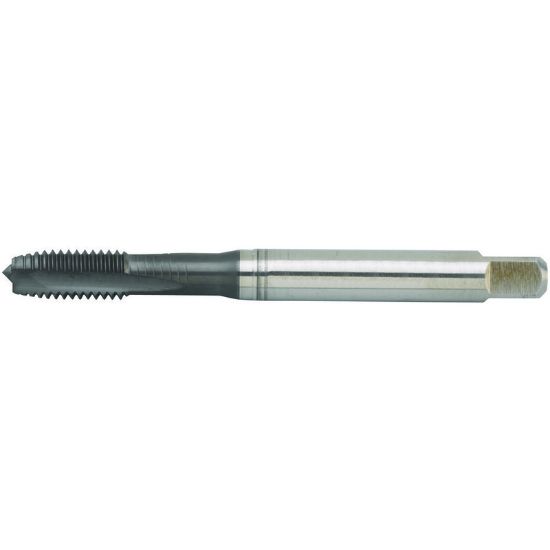

Picture of WIDIA/KENNAMETAL GT145005 M8-1.25MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal TiN + DLC

WIDIA/KENNAMETAL GT145005 M8-1.25MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal TiN + DLC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT145005
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Performance Rating High Performance
Shipping State Ohio
Made In USA No
Coating TiN + DLC
Package Size 1
Dimensional Specifications
Tap Chamfer 3.0P-5.5P
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Thread Pitch 1.25MM
Tool Material Steel
Overall Len 3.5430 89.99MM
Drill Range 0.2638 6.70MM - 0.2768 7.03MM
Tap Square 0.2440
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Length Type Standard
Dimension Standard DIN/DIN
Flutes/Inserts 3
Thread Limit 6H
Thread Size M8
Thread Type Metric
Shank/Pilot Dia 0.3150 8.00MM
Tap Type Plug
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
