  • WIDIA/KENNAMETAL GT145004 M6-1.00MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal TiN + DLC

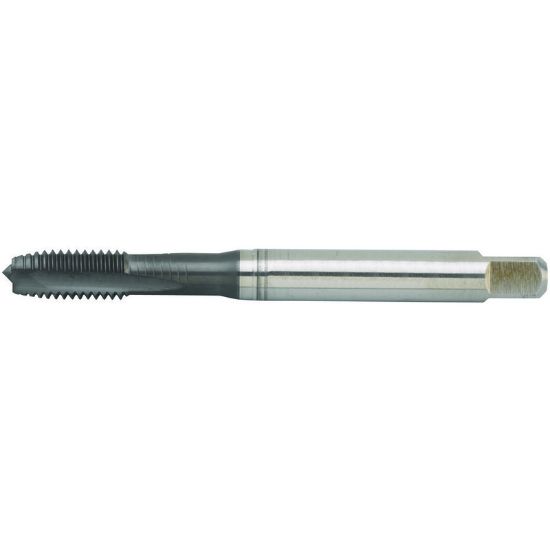

Picture of WIDIA/KENNAMETAL GT145004 M6-1.00MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal TiN + DLC

WIDIA/KENNAMETAL GT145004 M6-1.00MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal TiN + DLC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT145004
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Ohio
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Performance Rating High Performance
Coating TiN + DLC
Package Size 1
Made In USA No
Dimensional Specifications
Tap Style Cut Spiral Point
Tap Chamfer 3.0P-5.5P
Thread Size M6
Dimension Standard DIN/DIN
Flutes/Inserts 3
Thread Limit 6H
Cut Rating <40HRC Steel, Stainless Steel
Flute Direction R - Right
Length Type Standard
Thread Pitch 1.00MM
Machine Side Connection Type Tap Collet
Drill Range 0.1953 4.96MM - 0.2055 5.22MM
Tap Square 0.1930
Tool Material Steel
Thread Type Metric
Shank/Pilot Dia 0.2362 6.00MM
Overall Len 3.1560 80.16MM
Tap Type Plug
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Agricultural YES
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
