  • WIDIA/KENNAMETAL GT145002 M4-0.70MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal TiN + DLC

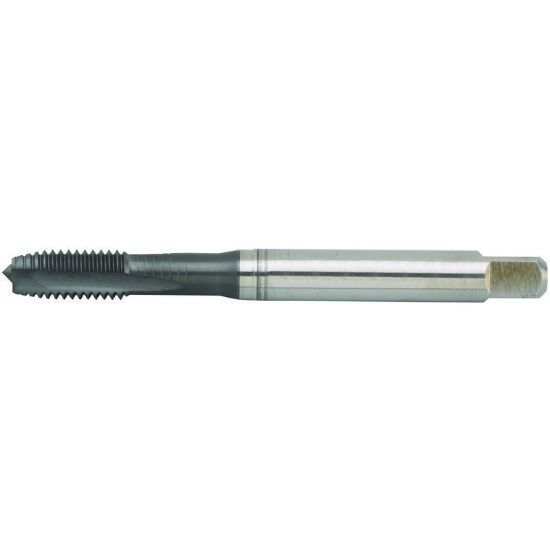

Picture of WIDIA/KENNAMETAL GT145002 M4-0.70MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal TiN + DLC

WIDIA/KENNAMETAL GT145002 M4-0.70MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal TiN + DLC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT145002
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN + DLC
Application Plug Tapping, Cut Tapping, Tapping, Through Hole Tapping
Performance Rating High Performance
Made In USA No
Shipping State Ohio
Package Size 1
Dimensional Specifications
Overall Len 2.4850 63.12MM
Thread Pitch 0.70MM
Thread Type Metric
Dimension Standard DIN/DIN
Flutes/Inserts 3
Tap Square 0.1340
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Length Type Standard
Drill Range 0.1287 3.27MM - 0.1358 3.45MM
Tap Type Plug
Thread Limit 6H
Thread Size M4
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.1772 4.50MM
Tap Style Cut Spiral Point
Tap Chamfer 3.0P-5.5P
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Aerospace Yes
Mold Yes
Agricultural YES
Energy Yes
Automotive Yes
Job Shop Yes
