  • WIDIA/KENNAMETAL GT145001 M3-0.50MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal TiN + DLC

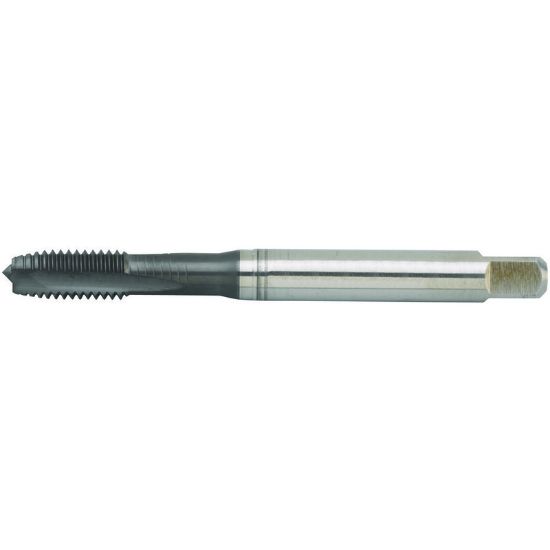

Picture of WIDIA/KENNAMETAL GT145001 M3-0.50MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal TiN + DLC

WIDIA/KENNAMETAL GT145001 M3-0.50MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal TiN + DLC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT145001
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Through Hole Tapping, Cut Tapping, Tapping
Package Size 1
Coating TiN + DLC
Performance Rating High Performance
Made In USA No
Shipping State Ohio
Dimensional Specifications
Thread Size M3
Thread Type Metric
Overall Len 2.2050 56.01MM
Drill Range 0.1083 2.75MM - 0.1106 2.81MM
Tap Type Plug
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Thread Limit 6H
Dimension Standard DIN/DIN
Flutes/Inserts 3
Tool Material Steel
Shank/Pilot Dia 0.1370 3.48MM
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Length Type Standard
Thread Pitch 0.50MM
Tap Square 0.1060
Tap Chamfer 3.0P-5.5P
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Energy Yes
Agricultural YES
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
