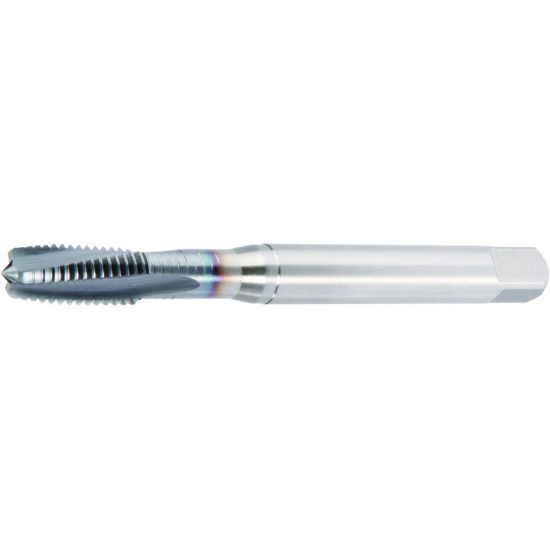

WIDIA/KENNAMETAL GT105001 M3-0.50MM Cut Spiral Flute Plug 3.0P-5.5P HSSE-Powder Metal TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT105001
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Coating TiCN
Package Size 1
Application Plug Tapping, Through Hole Tapping, Cut Tapping, Tapping
Made In USA No
Performance Rating High Performance
Shipping State Ohio
Dimensional Specifications
Machine Side Connection Type Tap Collet
Tap Square 0.1060
Tap Chamfer 3.0P-5.5P
Cut Rating <40HRC Steel, Stainless Steel
Flutes/Inserts 2
Thread Limit 6H
Tap Style Cut Spiral Flute
Thread Size M3
Thread Type Metric
Drill Range 0.1083 2.75MM - 0.1106 2.81MM
Flute Direction R - Right
Length Type Standard
Dimension Standard DIN/DIN
Shank/Pilot Dia 0.1370 3.48MM
Tool Material Steel
Thread Pitch 0.50MM
Overall Len 2.2050 56.01MM
Tap Type Plug
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Agricultural YES
Energy Yes
Automotive Yes
Aerospace Yes
Job Shop Yes
Mold Yes
