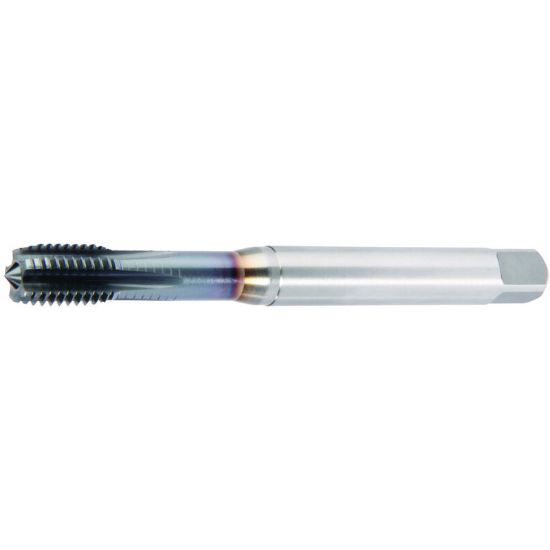

WIDIA/KENNAMETAL GT065005 M16-2.00MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT065005
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Coating TiCN
Made In USA No
Package Size 1
Shipping State Ohio
Application Through Hole Tapping, Plug Tapping, Tapping, Cut Tapping
Performance Rating High Performance
Dimensional Specifications
Thread Limit 6H
Thread Size M16
Flute Direction R - Right
Drill Range 0.5480 13.92MM - 0.5685 14.44MM
Length Type Standard
Cut Rating <40HRC Steel, Stainless Steel
Thread Pitch 2.00MM
Shank/Pilot Dia 0.4724 12.00MM
Tap Type Plug
Tool Material Steel
Overall Len 4.3310 110.01MM
Thread Type Metric
Flutes/Inserts 6
Dimension Standard DIN/DIN
Tap Square 0.3540
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Tap Chamfer 3.0P-5.5P
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Automotive Yes
Aerospace Yes
Job Shop Yes
Mold Yes
