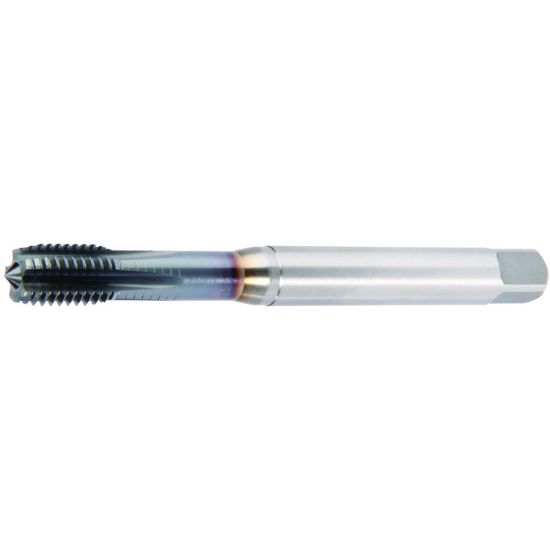

WIDIA/KENNAMETAL GT065001 M8-1.25MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT065001
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Made In USA No
Shipping State Ohio
Performance Rating High Performance
Coating TiCN
Dimensional Specifications
Cut Rating <40HRC Steel, Stainless Steel
Thread Pitch 1.25MM
Tool Material Steel
Flutes/Inserts 5
Drill Range 0.2638 6.70MM - 0.2768 7.03MM
Tap Square 0.2440
Flute Direction R - Right
Overall Len 3.5430 89.99MM
Length Type Standard
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Tap Chamfer 3.0P-5.5P
Dimension Standard DIN/DIN
Thread Size M8
Thread Type Metric
Shank/Pilot Dia 0.3150 8.00MM
Tap Type Plug
Thread Limit 6H
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Automotive Yes
Agricultural YES
Energy Yes
