  • WIDIA/KENNAMETAL GT045017 M14-1.50MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiAIN + TiN

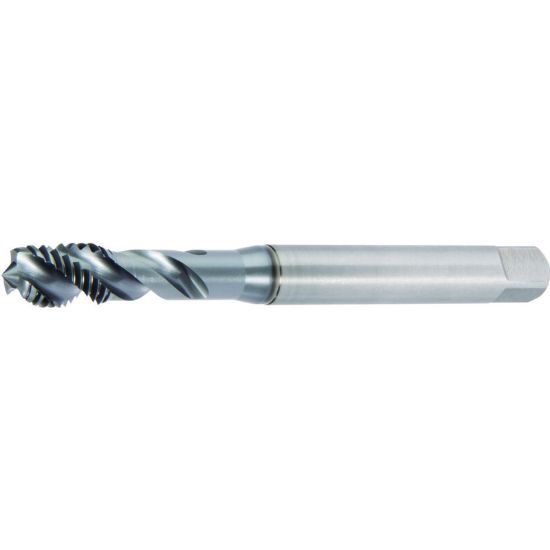

Picture of WIDIA/KENNAMETAL GT045017 M14-1.50MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiAIN + TiN

WIDIA/KENNAMETAL GT045017 M14-1.50MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiAIN + TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT045017
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

 TiAlN has a coating thickness of 1 to 3 microns and is typically violet-grey in colour. Titanium nitride (TiN) has an amber-gold putting the tin on top layer allows for smother surface

Products specifications
Attribute name Attribute value
General Product Information
Application Mod Bottom Tapping, Cut Tapping, Tapping
Shipping State Ohio
Made In USA No
Coating TiAIN + TiN
Package Size 1
Performance Rating High Performance
Dimensional Specifications
Tap Square 0.3540
Thread Type Metric
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Flutes/Inserts 4
Length Type Standard
Thread Limit 6H
Drill Range 0.4898 12.44MM - 0.5051 12.83MM
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Thread Size M14
Thread Pitch 1.50MM
Tool Material Steel
Overall Len 3.9370 100.00MM
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.4331 11.00MM
Tap Type Mod Bottom
Dimension Standard DIN/DIN
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
Automotive Yes
