  • WIDIA/KENNAMETAL GT045014 M10-1.25MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiAIN + TiN

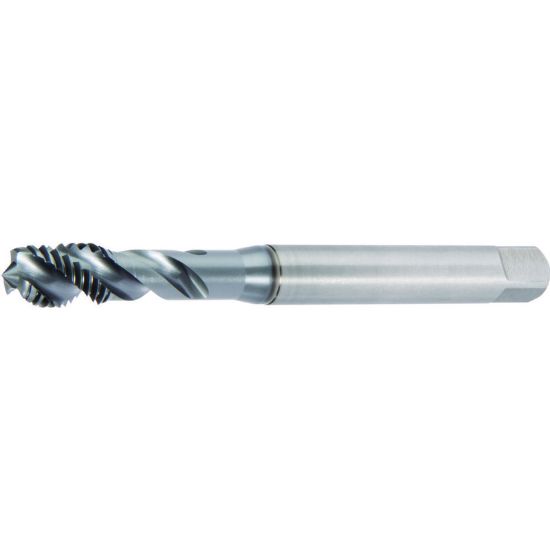

Picture of WIDIA/KENNAMETAL GT045014 M10-1.25MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiAIN + TiN

WIDIA/KENNAMETAL GT045014 M10-1.25MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiAIN + TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT045014
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

 TiAlN has a coating thickness of 1 to 3 microns and is typically violet-grey in colour. Titanium nitride (TiN) has an amber-gold putting the tin on top layer allows for smother surface

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Shipping State Ohio
Coating TiAIN + TiN
Package Size 1
Dimensional Specifications
Flute Direction R - Right
Overall Len 3.9370 100.00MM
Length Type Standard
Dimension Standard DIN/DIN
Flutes/Inserts 3
Thread Pitch 1.25MM
Tool Material Steel
Shank/Pilot Dia 0.2756 7.00MM
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Size M10
Machine Side Connection Type Tap Collet
Thread Type Metric
Drill Range 0.3425 8.70MM - 0.3555 9.03MM
Cut Rating <40HRC Steel, Stainless Steel
Tap Square 0.2170
Tap Chamfer 2.0P-3.0P
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
