  • WIDIA/KENNAMETAL GT045011 M20-2.50MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiAIN + TiN

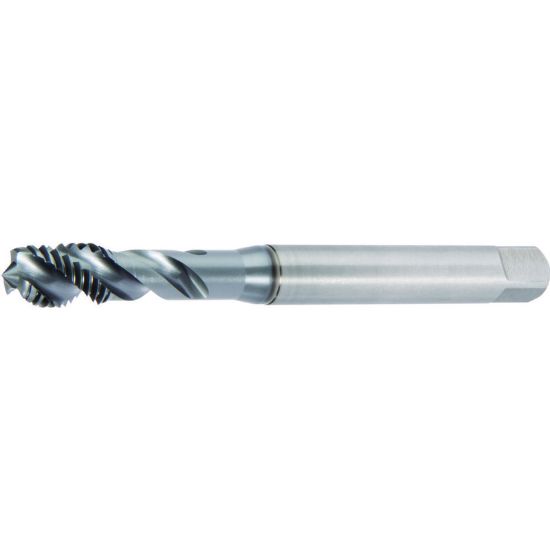

Picture of WIDIA/KENNAMETAL GT045011 M20-2.50MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiAIN + TiN

WIDIA/KENNAMETAL GT045011 M20-2.50MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiAIN + TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT045011
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

 TiAlN has a coating thickness of 1 to 3 microns and is typically violet-grey in colour. Titanium nitride (TiN) has an amber-gold putting the tin on top layer allows for smother surface

Products specifications
Attribute name Attribute value
General Product Information
Coating TiAIN + TiN
Package Size 1
Shipping State Ohio
Application Mod Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Thread Limit 6H
Overall Len 5.5120 140.00MM
Tap Chamfer 2.0P-3.0P
Thread Size M20
Shank/Pilot Dia 0.6299 16.00MM
Machine Side Connection Type Tap Collet
Tap Square 0.4720
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tool Material Steel
Thread Pitch 2.50MM
Thread Type Metric
Drill Range 0.6850 17.40MM - 0.7106 18.05MM
Dimension Standard DIN/DIN
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Flutes/Inserts 4
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
