  • WIDIA/KENNAMETAL GT045010 M18-2.50MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiAIN + TiN

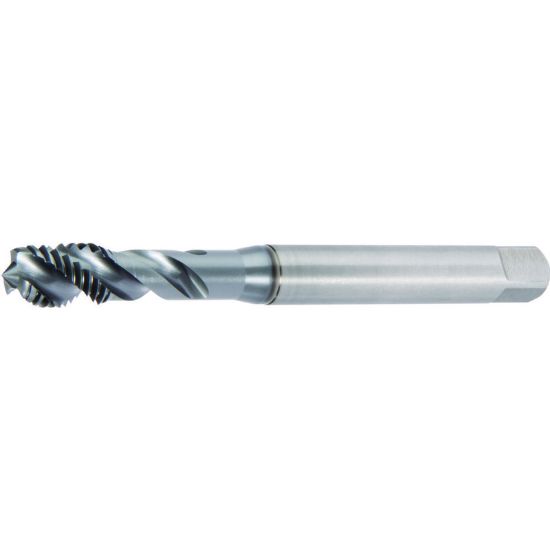

Picture of WIDIA/KENNAMETAL GT045010 M18-2.50MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiAIN + TiN

WIDIA/KENNAMETAL GT045010 M18-2.50MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiAIN + TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT045010
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

 TiAlN has a coating thickness of 1 to 3 microns and is typically violet-grey in colour. Titanium nitride (TiN) has an amber-gold putting the tin on top layer allows for smother surface

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Cut Tapping, Mod Bottom Tapping
Performance Rating High Performance
Coating TiAIN + TiN
Package Size 1
Shipping State Ohio
Made In USA No
Dimensional Specifications
Tool Material Steel
Overall Len 4.9210 124.99MM
Tap Square 0.4330
Dimension Standard DIN/DIN
Cut Rating <40HRC Steel, Stainless Steel
Flutes/Inserts 4
Tap Chamfer 2.0P-3.0P
Thread Pitch 2.50MM
Thread Type Metric
Drill Range 0.6063 15.40MM - 0.6319 16.05MM
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Size M18
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.5512 14.00MM
Flute Direction R - Right
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
Automotive Yes
