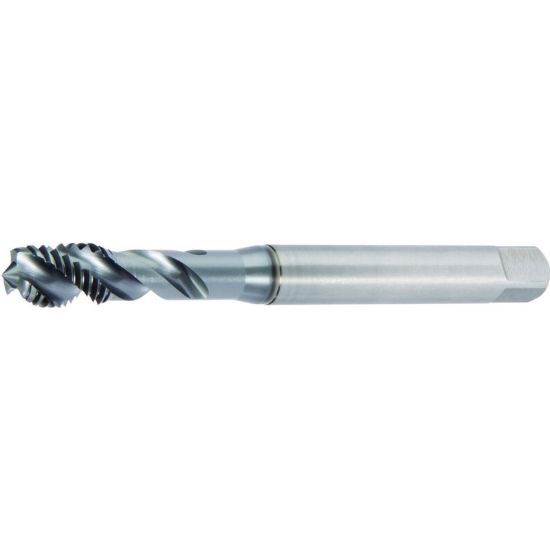

Picture of WIDIA/KENNAMETAL GT045006 M10-1.50MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiAIN + TiN

WIDIA/KENNAMETAL GT045006 M10-1.50MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiAIN + TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT045006
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

 TiAlN has a coating thickness of 1 to 3 microns and is typically violet-grey in colour. Titanium nitride (TiN) has an amber-gold putting the tin on top layer allows for smother surface

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Coating TiAIN + TiN
Package Size 1
Shipping State Ohio
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Dimensional Specifications
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Length Type Standard
Machine Side Connection Type Tap Collet
Drill Range 0.3323 8.44MM - 0.3476 8.83MM
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Limit 6H
Tap Chamfer 2.0P-3.0P
Dimension Standard DIN/DIN
Flutes/Inserts 3
Thread Size M10
Thread Type Metric
Shank/Pilot Dia 0.3937 10.00MM
Tap Square 0.3150
Thread Pitch 1.50MM
Tool Material Steel
Overall Len 3.9370 100.00MM
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Energy Yes
Agricultural YES
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
