  • WIDIA/KENNAMETAL GT045005 M8-1.25MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiAIN + TiN

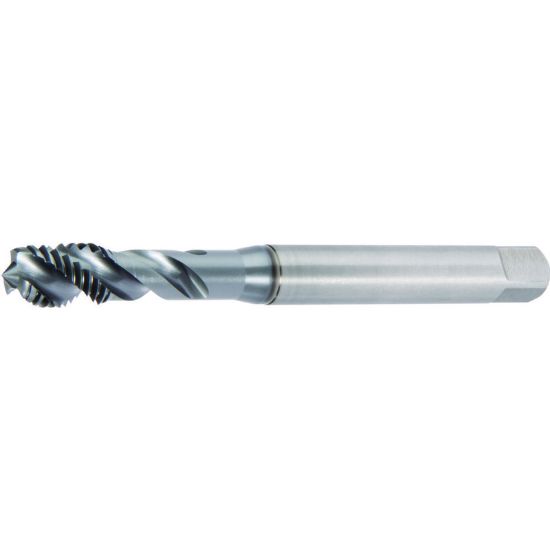

Picture of WIDIA/KENNAMETAL GT045005 M8-1.25MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiAIN + TiN

WIDIA/KENNAMETAL GT045005 M8-1.25MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiAIN + TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT045005
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

 TiAlN has a coating thickness of 1 to 3 microns and is typically violet-grey in colour. Titanium nitride (TiN) has an amber-gold putting the tin on top layer allows for smother surface

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Mod Bottom Tapping, Tapping
Performance Rating High Performance
Made In USA No
Shipping State Ohio
Coating TiAIN + TiN
Package Size 1
Dimensional Specifications
Dimension Standard DIN/DIN
Flutes/Inserts 3
Thread Size M8
Thread Type Metric
Shank/Pilot Dia 0.3150 8.00MM
Flute Direction R - Right
Length Type Standard
Machine Side Connection Type Tap Collet
Cut Rating <40HRC Steel, Stainless Steel
Tap Chamfer 2.0P-3.0P
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Pitch 1.25MM
Tool Material Steel
Overall Len 3.5430 89.99MM
Drill Range 0.2638 6.70MM - 0.2768 7.03MM
Tap Square 0.2440
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Agricultural YES
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
