  • WIDIA/KENNAMETAL GT045001 M3-0.50MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiAIN + TiN

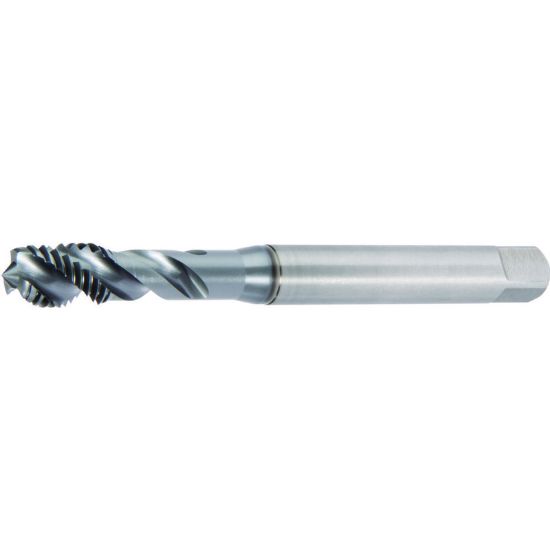

Picture of WIDIA/KENNAMETAL GT045001 M3-0.50MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiAIN + TiN

WIDIA/KENNAMETAL GT045001 M3-0.50MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiAIN + TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT045001
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

 TiAlN has a coating thickness of 1 to 3 microns and is typically violet-grey in colour. Titanium nitride (TiN) has an amber-gold putting the tin on top layer allows for smother surface

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Mod Bottom Tapping, Cut Tapping
Performance Rating High Performance
Shipping State Ohio
Made In USA No
Coating TiAIN + TiN
Package Size 1
Dimensional Specifications
Thread Size M3
Shank/Pilot Dia 0.1370 3.48MM
Drill Range 0.1083 2.75MM - 0.1106 2.81MM
Thread Pitch 0.50MM
Tap Square 0.1060
Thread Type Metric
Overall Len 2.2050 56.01MM
Tool Material Steel
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Flute Direction R - Right
Length Type Standard
Thread Limit 6H
Cut Rating <40HRC Steel, Stainless Steel
Tap Chamfer 2.0P-3.0P
Dimension Standard DIN/DIN
Flutes/Inserts 3
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
