  • WIDIA/KENNAMETAL GT025014 M10-1.25MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiN

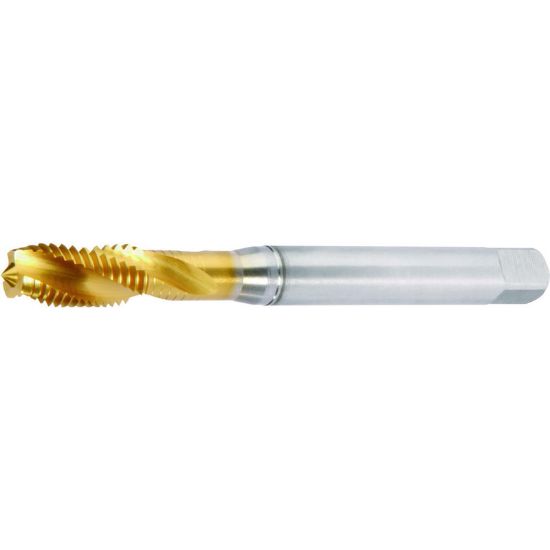

Picture of WIDIA/KENNAMETAL GT025014 M10-1.25MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiN

WIDIA/KENNAMETAL GT025014 M10-1.25MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT025014
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Mod Bottom Tapping, Cut Tapping, Tapping
Coating TiN
Shipping State Ohio
Package Size 1
Made In USA No
Performance Rating High Performance
Dimensional Specifications
Thread Type Metric
Drill Range 0.3425 8.70MM - 0.3555 9.03MM
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard DIN/DIN
Flutes/Inserts 3
Thread Limit 6H
Cut Rating <40HRC Steel, Stainless Steel
Tap Square 0.2170
Tap Chamfer 2.0P-3.0P
Thread Pitch 1.25MM
Tool Material Steel
Shank/Pilot Dia 0.2756 7.00MM
Flute Direction R - Right
Overall Len 3.9370 100.00MM
Length Type Standard
Thread Size M10
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
