  • WIDIA/KENNAMETAL GT025013 M10-1.00MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiN

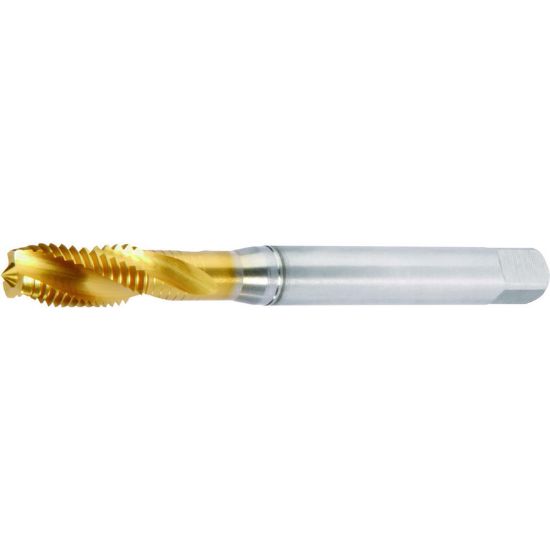

Picture of WIDIA/KENNAMETAL GT025013 M10-1.00MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiN

WIDIA/KENNAMETAL GT025013 M10-1.00MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT025013
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Mod Bottom Tapping, Tapping, Cut Tapping
Shipping State Ohio
Coating TiN
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Thread Limit 6H
Drill Range 0.3528 8.96MM - 0.3630 9.22MM
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Flute Direction R - Right
Overall Len 3.5430 89.99MM
Length Type Standard
Tool Material Steel
Shank/Pilot Dia 0.2756 7.00MM
Thread Size M10
Thread Type Metric
Thread Pitch 1.00MM
Machine Side Connection Type Tap Collet
Dimension Standard DIN/DIN
Flutes/Inserts 3
Cut Rating <40HRC Steel, Stainless Steel
Tap Square 0.2170
Tap Chamfer 2.0P-3.0P
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Automotive Yes
Aerospace Yes
Job Shop Yes
Mold Yes
