  • WIDIA/KENNAMETAL GT025009 M16-2.00MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiN

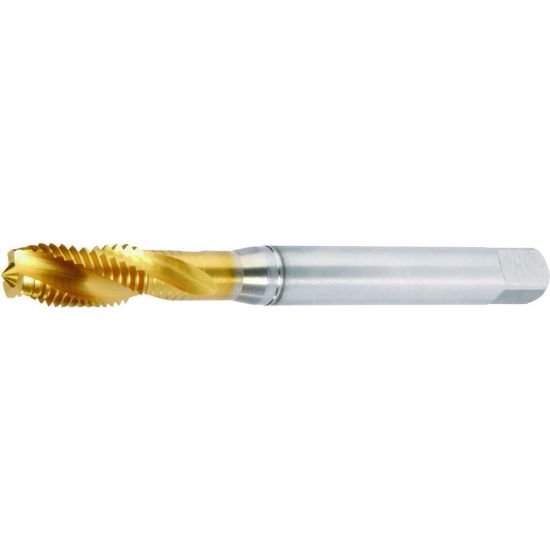

Picture of WIDIA/KENNAMETAL GT025009 M16-2.00MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiN

WIDIA/KENNAMETAL GT025009 M16-2.00MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT025009
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Ohio
Package Size 1
Coating TiN
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Thread Limit 6H
Cut Rating <40HRC Steel, Stainless Steel
Tap Chamfer 2.0P-3.0P
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Size M16
Flute Direction R - Right
Drill Range 0.5480 13.92MM - 0.5685 14.44MM
Length Type Standard
Dimension Standard DIN/DIN
Overall Len 4.3310 110.01MM
Flutes/Inserts 3
Tap Square 0.3540
Tool Material Steel
Thread Pitch 2.00MM
Thread Type Metric
Shank/Pilot Dia 0.4724 12.00MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Agricultural YES
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
