  • WIDIA/KENNAMETAL GT025008 M14-2.00MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiN

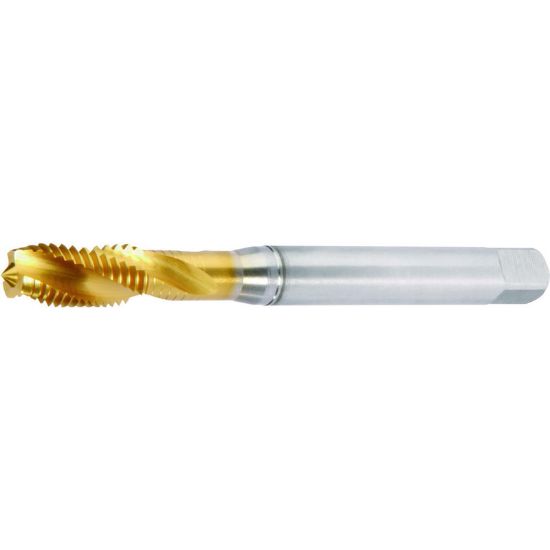

Picture of WIDIA/KENNAMETAL GT025008 M14-2.00MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiN

WIDIA/KENNAMETAL GT025008 M14-2.00MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT025008
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Cut Tapping, Mod Bottom Tapping, Tapping
Performance Rating High Performance
Coating TiN
Shipping State Ohio
Made In USA No
Dimensional Specifications
Cut Rating <40HRC Steel, Stainless Steel
Tap Chamfer 2.0P-3.0P
Tool Material Steel
Overall Len 4.3310 110.01MM
Dimension Standard DIN/DIN
Flutes/Inserts 3
Tap Square 0.3540
Machine Side Connection Type Tap Collet
Drill Range 0.4693 11.92MM - 0.4898 12.44MM
Thread Pitch 2.00MM
Thread Type Metric
Thread Limit 6H
Shank/Pilot Dia 0.4331 11.00MM
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Size M14
Flute Direction R - Right
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
Automotive Yes
