  • WIDIA/KENNAMETAL GT025001 M3-0.50MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiN

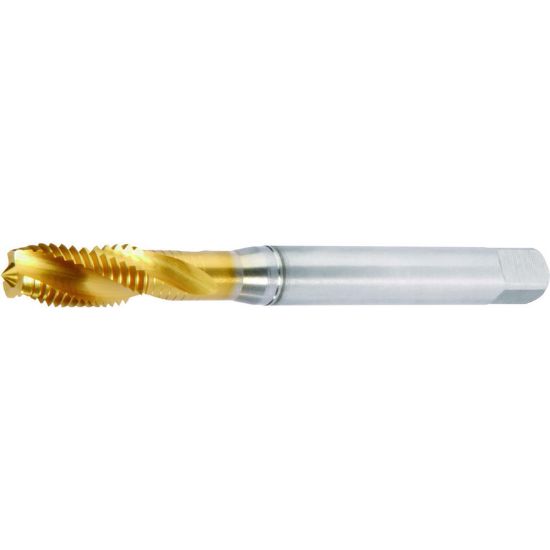

Picture of WIDIA/KENNAMETAL GT025001 M3-0.50MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiN

WIDIA/KENNAMETAL GT025001 M3-0.50MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT025001
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Made In USA No
Shipping State Ohio
Application Mod Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Coating TiN
Dimensional Specifications
Thread Limit 6H
Tap Chamfer 2.0P-3.0P
Tool Material Steel
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Length Type Standard
Thread Pitch 0.50MM
Tap Square 0.1060
Dimension Standard DIN/DIN
Flutes/Inserts 3
Thread Size M3
Thread Type Metric
Overall Len 2.2050 56.01MM
Drill Range 0.1083 2.75MM - 0.1106 2.81MM
Shank/Pilot Dia 0.1370 3.48MM
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
