  • WIDIA/KENNAMETAL GT005017 M14-1.50MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal TiN

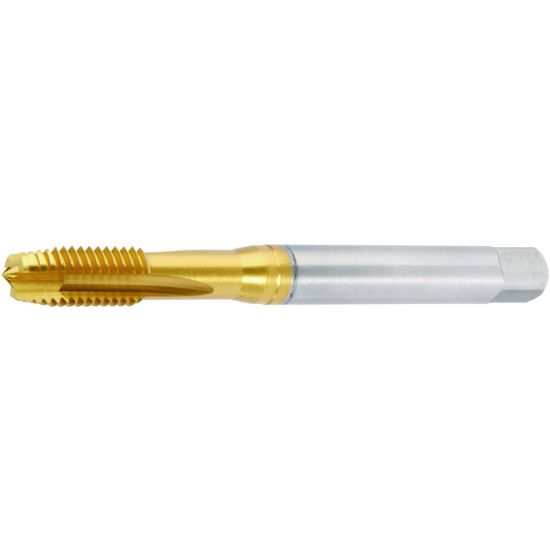

Picture of WIDIA/KENNAMETAL GT005017 M14-1.50MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal TiN

WIDIA/KENNAMETAL GT005017 M14-1.50MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT005017
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Through Hole Tapping, Cut Tapping, Tapping
Made In USA No
Coating TiN
Package Size 1
Shipping State Ohio
Performance Rating High Performance
Dimensional Specifications
Thread Type Metric
Tool Material Steel
Tap Square 0.3540
Thread Size M14
Thread Pitch 1.50MM
Overall Len 3.9370 100.00MM
Length Type Standard
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Tap Chamfer 3.0P-5.5P
Thread Limit 6H
Shank/Pilot Dia 0.4331 11.00MM
Drill Range 0.4898 12.44MM - 0.5051 12.83MM
Tap Type Plug
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Dimension Standard DIN/DIN
Flutes/Inserts 3
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Automotive Yes
Agricultural YES
Energy Yes
