  • WIDIA/KENNAMETAL GT005015 M12-1.25MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal TiN

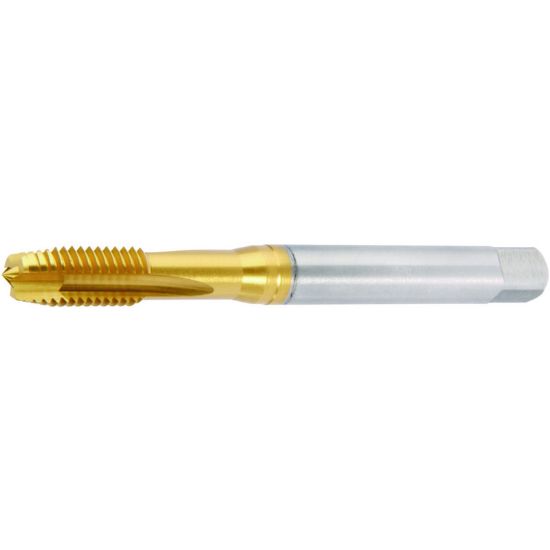

Picture of WIDIA/KENNAMETAL GT005015 M12-1.25MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal TiN

WIDIA/KENNAMETAL GT005015 M12-1.25MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT005015
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Application Plug Tapping, Cut Tapping, Tapping, Through Hole Tapping
Shipping State Ohio
Made In USA No
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Tap Chamfer 3.0P-5.5P
Thread Type Metric
Tap Type Plug
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Shank/Pilot Dia 0.3543 9.00MM
Length Type Standard
Thread Size M12
Dimension Standard DIN/DIN
Tool Material Steel
Overall Len 3.9370 100.00MM
Thread Pitch 1.25MM
Flutes/Inserts 3
Drill Range 0.4213 10.70MM - 0.4343 11.03MM
Tap Square 0.2760
Thread Limit 6H
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Aerospace Yes
Mold Yes
Agricultural YES
Energy Yes
