  • WIDIA/KENNAMETAL GT005014 M10-1.25MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal TiN

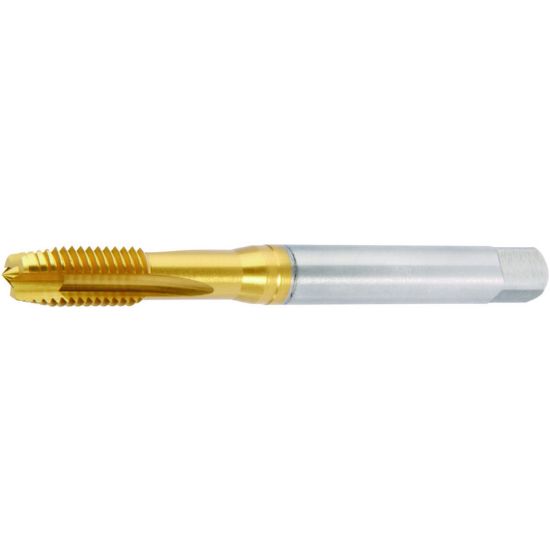

Picture of WIDIA/KENNAMETAL GT005014 M10-1.25MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal TiN

WIDIA/KENNAMETAL GT005014 M10-1.25MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT005014
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Coating TiN
Performance Rating High Performance
Shipping State Ohio
Package Size 1
Dimensional Specifications
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Tap Square 0.2170
Length Type Standard
Dimension Standard DIN/DIN
Flutes/Inserts 3
Thread Pitch 1.25MM
Tool Material Steel
Shank/Pilot Dia 0.2756 7.00MM
Overall Len 3.9370 100.00MM
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Thread Size M10
Tap Chamfer 3.0P-5.5P
Thread Type Metric
Drill Range 0.3425 8.70MM - 0.3555 9.03MM
Tap Type Plug
Thread Limit 6H
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Energy Yes
Agricultural YES
