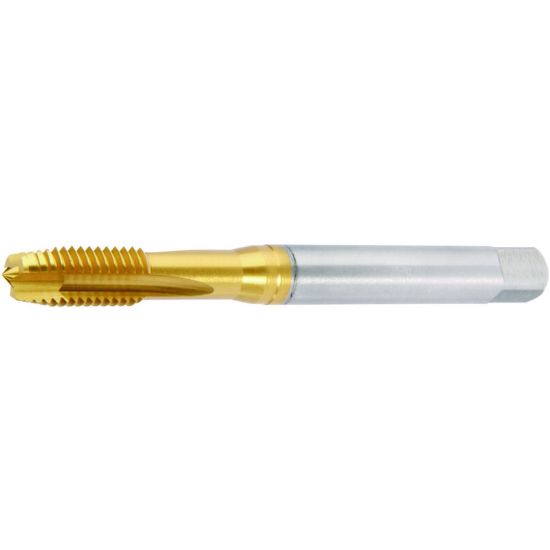

Picture of WIDIA/KENNAMETAL GT005012 M8-1.00MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal TiN

WIDIA/KENNAMETAL GT005012 M8-1.00MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT005012
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Ohio
Application Cut Tapping, Tapping, Through Hole Tapping, Plug Tapping
Performance Rating High Performance
Package Size 1
Coating TiN
Made In USA No
Dimensional Specifications
Thread Size M8
Tap Type Plug
Dimension Standard DIN/DIN
Flutes/Inserts 3
Tool Material Steel
Thread Limit 6H
Cut Rating <40HRC Steel, Stainless Steel
Drill Range 0.2740 6.96MM - 0.2843 7.22MM
Thread Pitch 1.00MM
Machine Side Connection Type Tap Collet
Tap Square 0.1930
Tap Style Cut Spiral Point
Tap Chamfer 3.0P-5.5P
Flute Direction R - Right
Overall Len 3.5430 89.99MM
Length Type Standard
Thread Type Metric
Shank/Pilot Dia 0.2362 6.00MM
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
Automotive Yes
