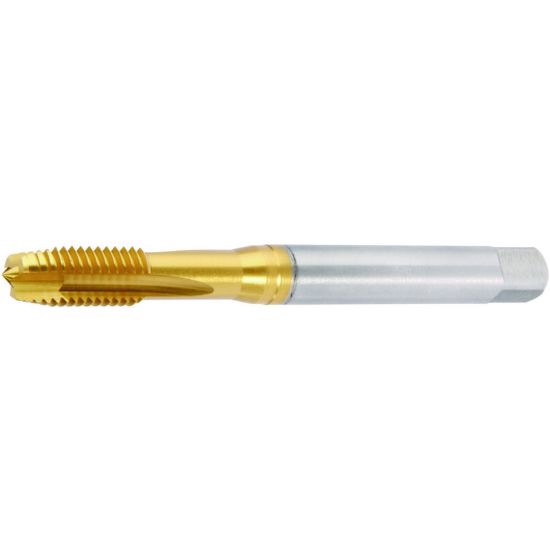

Picture of WIDIA/KENNAMETAL GT005011 M20-2.50MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal TiN

WIDIA/KENNAMETAL GT005011 M20-2.50MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT005011
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Ohio
Coating TiN
Application Through Hole Tapping, Plug Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Thread Limit 6H
Overall Len 5.5120 140.00MM
Thread Size M20
Tap Type Plug
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.6299 16.00MM
Tap Square 0.4720
Tap Style Cut Spiral Point
Tap Chamfer 3.0P-5.5P
Tool Material Steel
Thread Pitch 2.50MM
Thread Type Metric
Drill Range 0.6850 17.40MM - 0.7106 18.05MM
Dimension Standard DIN/DIN
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Flutes/Inserts 4
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Automotive Yes
Job Shop Yes
Aerospace Yes
Mold Yes
