  • WIDIA/KENNAMETAL GT005010 M18-2.00MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal TiN

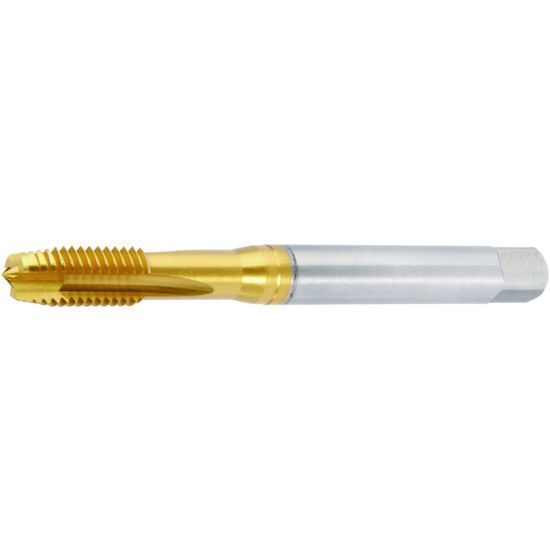

Picture of WIDIA/KENNAMETAL GT005010 M18-2.00MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal TiN

WIDIA/KENNAMETAL GT005010 M18-2.00MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT005010
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Performance Rating High Performance
Package Size 1
Coating TiN
Shipping State Ohio
Made In USA No
Dimensional Specifications
Tool Material Steel
Overall Len 4.9210 124.99MM
Tap Square 0.4330
Dimension Standard DIN/DIN
Thread Limit 6H
Thread Type Metric
Tap Type Plug
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Thread Size M18
Thread Pitch 2.00MM
Shank/Pilot Dia 0.5512 14.00MM
Tap Chamfer 3.0P-5.5P
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Flutes/Inserts 4
Drill Range 0.6268 15.92MM - 0.6472 16.44MM
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
