  • WIDIA/KENNAMETAL GT005009 M16-2.00MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal TiN

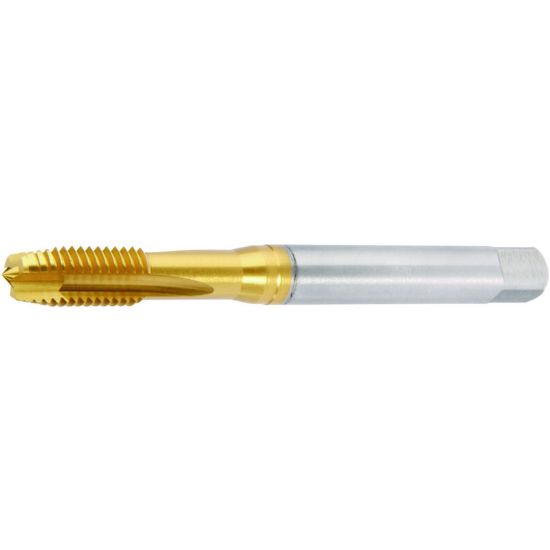

Picture of WIDIA/KENNAMETAL GT005009 M16-2.00MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal TiN

WIDIA/KENNAMETAL GT005009 M16-2.00MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT005009
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Performance Rating High Performance
Coating TiN
Shipping State Ohio
Made In USA No
Package Size 1
Dimensional Specifications
Tap Style Cut Spiral Point
Tap Chamfer 3.0P-5.5P
Machine Side Connection Type Tap Collet
Tool Material Steel
Overall Len 4.3310 110.01MM
Thread Size M16
Flute Direction R - Right
Drill Range 0.5480 13.92MM - 0.5685 14.44MM
Length Type Standard
Dimension Standard DIN/DIN
Tap Square 0.3540
Thread Limit 6H
Cut Rating <40HRC Steel, Stainless Steel
Flutes/Inserts 4
Thread Pitch 2.00MM
Thread Type Metric
Shank/Pilot Dia 0.4724 12.00MM
Tap Type Plug
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
