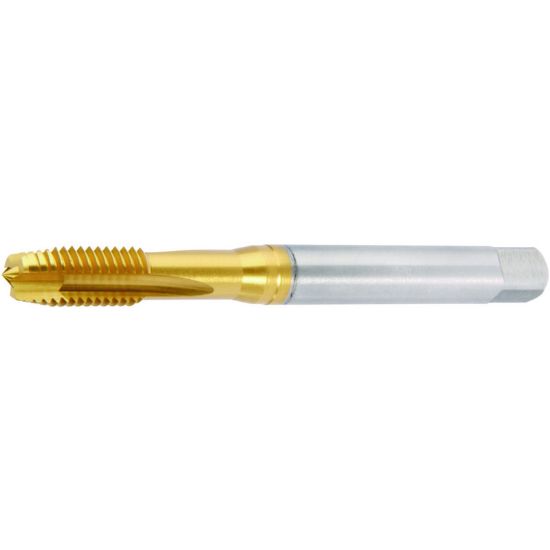

Picture of WIDIA/KENNAMETAL GT005005 M8-1.25MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal TiN

WIDIA/KENNAMETAL GT005005 M8-1.25MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT005005
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Package Size 1
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Performance Rating High Performance
Made In USA No
Shipping State Ohio
Dimensional Specifications
Thread Size M8
Thread Type Metric
Shank/Pilot Dia 0.3150 8.00MM
Tap Type Plug
Machine Side Connection Type Tap Collet
Thread Limit 6H
Cut Rating <40HRC Steel, Stainless Steel
Dimension Standard DIN/DIN
Flutes/Inserts 3
Thread Pitch 1.25MM
Tool Material Steel
Overall Len 3.5430 89.99MM
Drill Range 0.2638 6.70MM - 0.2768 7.03MM
Tap Square 0.2440
Flute Direction R - Right
Length Type Standard
Tap Style Cut Spiral Point
Tap Chamfer 3.0P-5.5P
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
